Introduction to the pultrusion process principle of Custom Pultrusion Shapes

Table of Contents

1. The Art and Science of Pultrusion: An Overview

2. Deconstructing the Pultrusion Process: A Step-by-Step Breakdown

3. Why Choose Custom Pultrusion Shapes? The Unbeatable Advantage Portfolio

4. Engineering the Future: Key Parameters of Custom Pultrusion Shapes

   • 4.1. Material Composition: The Foundation of Performance

   • 4.2. Dimensional Specifications and Tolerances

   • 4.3. Mechanical Properties: The Core of Structural Integrity

5. The Application Spectrum: Where Custom Pultrusion Shapes Excel

6. Partnering for Success: Your Guide to Specifying the Perfect Profile

1. The Art and Science of Pultrusion: An Overview

In the world of advanced composite manufacturing, few processes offer the unique combination of efficiency, consistency, and strength found in pultrusion. For engineers and designers seeking a superior alternative to traditional materials like steel, aluminum, and wood, pultrusion opens a realm of possibilities. At its core, pultrusion is a continuous, highly automated manufacturing method for producing composite materials with a constant cross-sectional profile. This guide delves deep into the principles of the pultrusion process, with a specific focus on the capabilities and specifications of Custom Pultrusion Shapes. Our goal is to provide a comprehensive understanding of how these high-performance profiles are created and why they are the material of choice for demanding applications across countless industries.

2. Deconstructing the Pultrusion Process: A Step-by-Step Breakdown

The term "pultrusion" is a portmanteau of "pull" and "extrusion." Unlike extrusion, which pushes material through a die, pultrusion pulls reinforcing fibers and resin through a heated die to cure the composite into its final shape. This fundamental difference is key to the exceptional properties of the finished product. The process can be broken down into several critical stages:

1. Creel Station: The process begins with spools of continuous reinforcing fibers, such as fiberglass (roving), carbon fiber, or aramid. These fibers provide the primary tensile strength for the profile.

2. Guide System: The fibers are guided and aligned precisely to enter the next stage in the correct orientation, ensuring uniform distribution within the profile.

3. Resin Impregnation: The aligned fibers are pulled through a resin impregnation tank (or "wet-out" bath). Here, they are thoroughly saturated with a liquid polymer resin system—typically polyester, vinyl ester, or epoxy. This resin matrix will bind the fibers together, transfer loads between them, and provide environmental and chemical resistance.

4. Pre-forming Station: The saturated fibers are then guided through a series of pre-formers. These tools gently shape the material into a rough approximation of the final profile, removing excess resin and ensuring no air is trapped before it enters the die.

5. Heated Die: This is the heart of the process. The pre-formed, resin-rich material is pulled into a precisely machined, heated steel die. The die's temperature is carefully controlled to initiate a rapid chemical reaction called "curing" or "gelation." Inside the die, the resin transforms from a liquid to a solid state, taking on the exact shape of the die cavity.

6. Pulling System: A continuous puller, often a caterpillar-style or reciprocating clamp system, grips the cured profile and pulls it through the die at a constant rate. This pulling action is what drives the entire continuous process.

7. Cut-off Saw: Once the fully cured and hardened profile exits the die, it is automatically cut to pre-determined lengths by a traveling cut-off saw.

This continuous process results in a product with exceptionally consistent properties and dimensions along its entire length, making it ideal for high-volume production of high-strength Custom Pultrusion Shapes.

3. Why Choose Custom Pultrusion Shapes? The Unbeatable Advantage Portfolio

Opting for Custom Pultrusion Shapes over traditional materials or other composite processes provides a significant competitive edge. The benefits are numerous and impactful:

• High Strength-to-Weight Ratio: Pultruded profiles are significantly stronger and stiffer than steel on a weight-for-weight basis, leading to lighter structures, reduced shipping costs, and easier installation.

• Corrosion Resistance: Unlike metals, composites do not rust or corrode. They are immune to galvanic corrosion and perform exceptionally well in harsh chemical, acidic, saline, and humid environments.

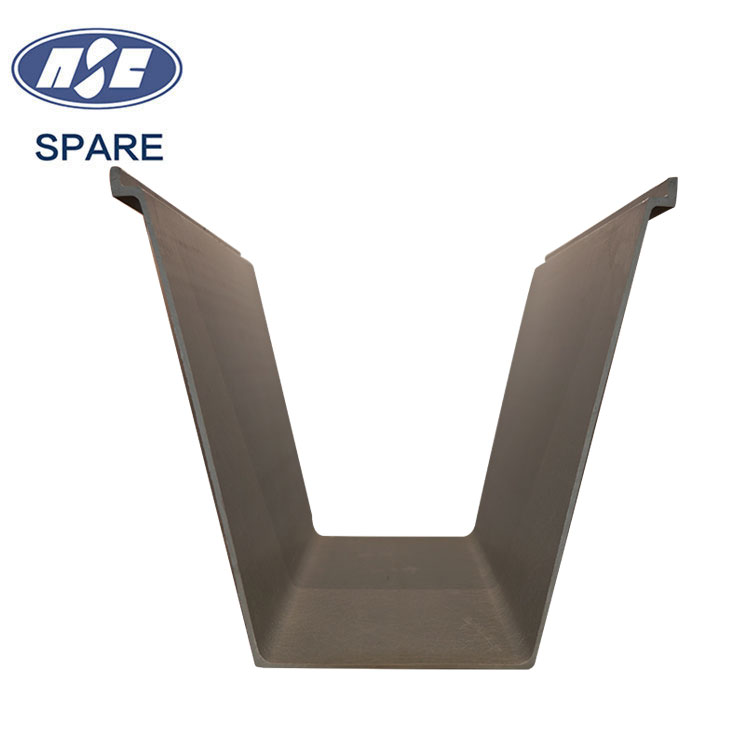

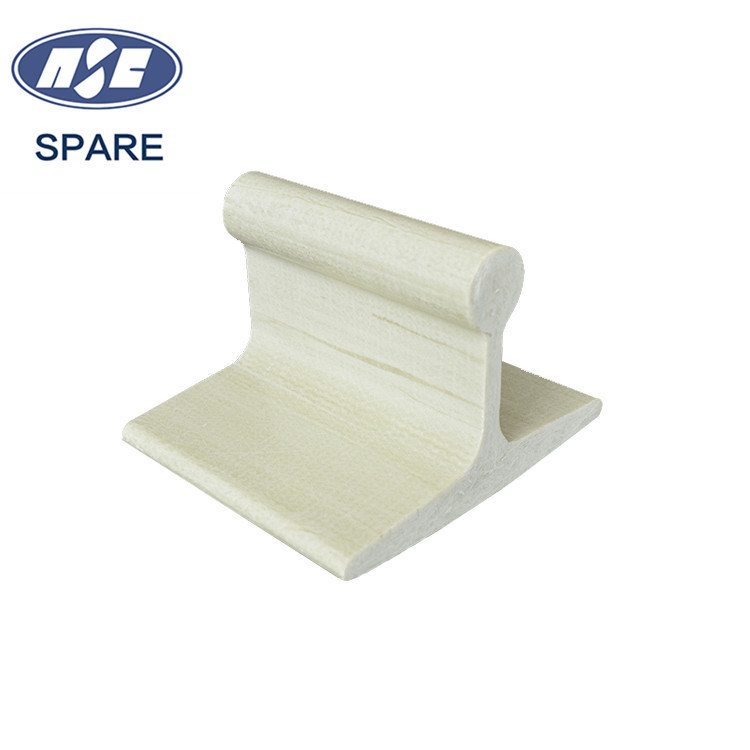

• Design Flexibility: The ability to create virtually any constant cross-section allows for the integration of multiple functions into a single profile, reducing assembly time and cost.

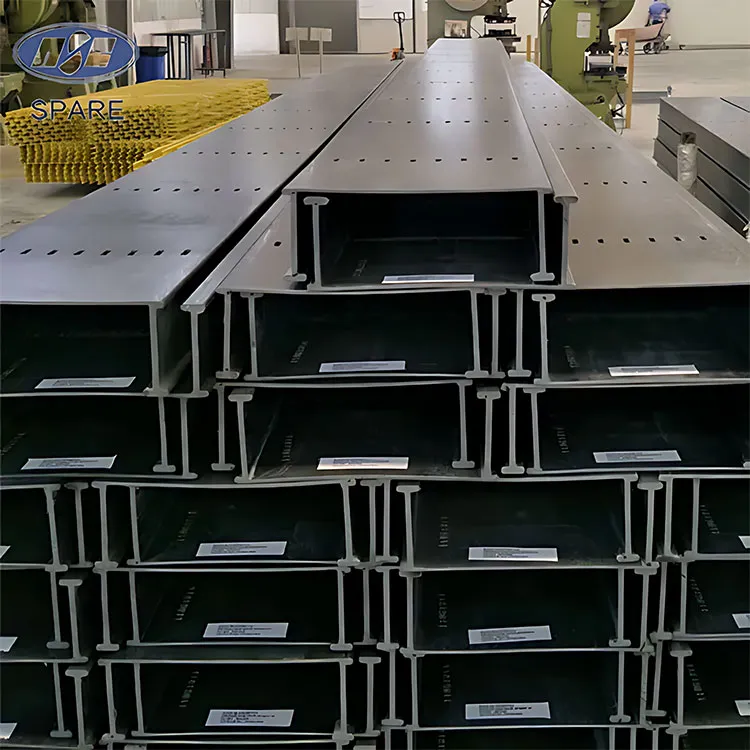

• Excellent Dielectric Properties: Being non-conductive, pultruded shapes are ideal for electrical and utility applications, such as ladder rails, cable trays, and insulator cores.

• Dimensional Stability: Composites have a low coefficient of thermal expansion and are not susceptible to moisture absorption like wood, ensuring they maintain their shape and size under varying environmental conditions.

• Low Lifecycle Cost: While the initial material cost may be higher, the savings from reduced maintenance, longevity, and ease of installation often result in a lower total cost of ownership.

4. Engineering the Future: Key Parameters of Custom Pultrusion Shapes

To effectively specify and utilize pultruded profiles, understanding their key engineering parameters is essential. These specifications define the performance and suitability of the profile for your application.

4.1. Material Composition: The Foundation of Performance

The properties of a pultruded profile are determined by the combination of its reinforcement and resin.

4.2. Dimensional Specifications and Tolerances

Pultrusion is known for holding tight dimensional tolerances. Standard parameters include:

• Profile Dimensions: Width, height, wall thickness, and inner radii.

• Straightness Tolerance: Typically < 1/8 inch per 10 feet.

• Twist Tolerance: Defined as degrees of twist per unit length.

• Length Tolerance: Usually ± 1/8 inch for cut lengths.

4.3. Mechanical Properties: The Core of Structural Integrity

The mechanical properties are the most critical parameters for structural design. These are typically provided in a technical data sheet. Below is an example of properties for a standard fiberglass-reinforced polyester profile.

Note: These values are representative and can be significantly altered by changing the resin system, reinforcement type, and fiber volume fraction.

5. The Application Spectrum: Where Custom Pultrusion Shapes Excel

The unique properties of pultruded composites make them ideal for a vast range of applications:

• Construction & Infrastructure: Structural beams, grating, handrails, window frames, and bridge decking. Their corrosion resistance is invaluable in waterfront structures and chemical plants.

• Electrical & Utility: Ladder rails, cable support systems, antenna covers, and cross-arms for utility poles. The dielectric strength and non-conductivity are critical here.

• Transportation: Truck and trailer side rails, floor supports, bus components, and cargo management systems. The weight savings directly translate to increased payload and fuel efficiency.

• Marine & Water Treatment: Walkways, ladders, handrails, and structural components for boats and docks. They are impervious to rot and marine borers, unlike wood.

• Industrial: Safety cages, conveyor components, support structures for corrosive environments, and custom fixtures.

6. Partnering for Success: Your Guide to Specifying the Perfect Profile

Success with Custom Pultrusion Shapes hinges on a collaborative partnership between you and the manufacturer. When beginning a project, be prepared to discuss:

• Functional Requirements: What is the primary function of the part? (e.g., structural support, electrical insulation, corrosion resistance).

• Load Conditions: What are the expected tensile, compressive, flexural, and dynamic loads?

• Environmental Exposure: Will the part be exposed to chemicals, UV radiation, saltwater, or extreme temperatures?

• Regulatory Standards: Are there specific industry standards (e.g., ASTM, ISO, UL) that must be met?

• Assembly & Finishing: How will the profile integrate with other components? Will it require drilling, painting, or other secondary operations?

By providing detailed information, our engineering team can help optimize the design, select the ideal material combination, and manufacture a profile that delivers unparalleled performance and value. The pultrusion process is a powerful tool for innovation, and with a clear understanding of its principles and parameters, you can unlock the full potential of composite materials for your next project.
