Product Specification

box	No.	A	t	Serial Number
	1	180	15	F-0857
	2	101.6	9.52	F-0656
	3	101.6	6.35	F-0051
	4	101.6	6	F-0051-6
	5	100	10	F-0627
	6	90.6	4.3	F-0463
	7	90	6	F-0407
	8	88.9	6.35	F-0654
	9	88.5	12.5	F-0623
	10	88.5	6.15	F-0047
	11	88.5	3.1	F-0519
	12	82	6.35	F-0415
	13	82	6	F-0415-6.0
	14	80	3.5	F-0621
	15	80	12	F-0546
	16	76.2	9.52	F-0655
	17	76.2	6.35	F-0046
	18	76.2	4	F-0508
	19	75	6	F-0045
	20	68	5	F-0748
	21	64.5	3	F-0054
	22	63.2	5.9	F-0053
	23	62.6	5.7	F-0437
	24	60	4.5	F-0052
	25	60	2.5	F-0622
	26	60	4.25	F-0052-4.25
	27	60	4	F-0783
	28	58.2	3	F-0055
	29	50.8	6.35	F-0041-6.35
	30	50.8	5	F-0516
	31	50.8	4	F-0041-4
	32	50.8	3.2	F-0041-3.2
	33	50	4	F-0682-4
	34	50	3.6	F-0682-3.6
	35	50	5	F-0682
	36	45.96	5.52	F-0826
	37	44	6	F-0040
	38	44	3	F-0520
	39	40	4	F-0771
	40	40	3	F-0785
	41	38.1	3.18	F-0632
	42	38	5	F-0049
	43	38	3.2	F-0048
	44	38	2	F-0509
	45	33.5	2	F-0786
	46	33.2	4	F-0268
	47	32	3	F-0791
	48	32	2	F-0791-2.0
	49	30	3	F-0056-3.0
	50	30	2	F-0056
	51	25	3	F-0039
	52	25	2	F-0737

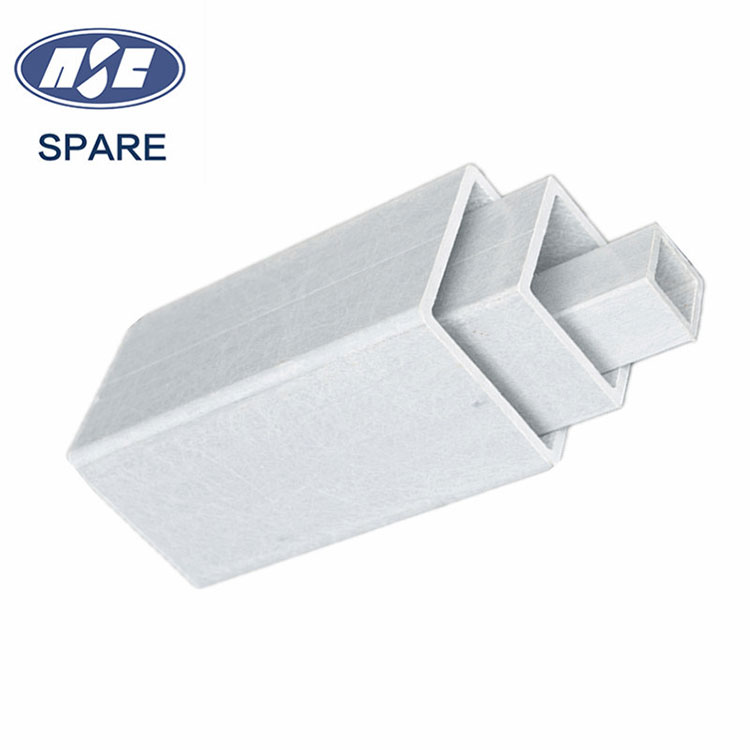

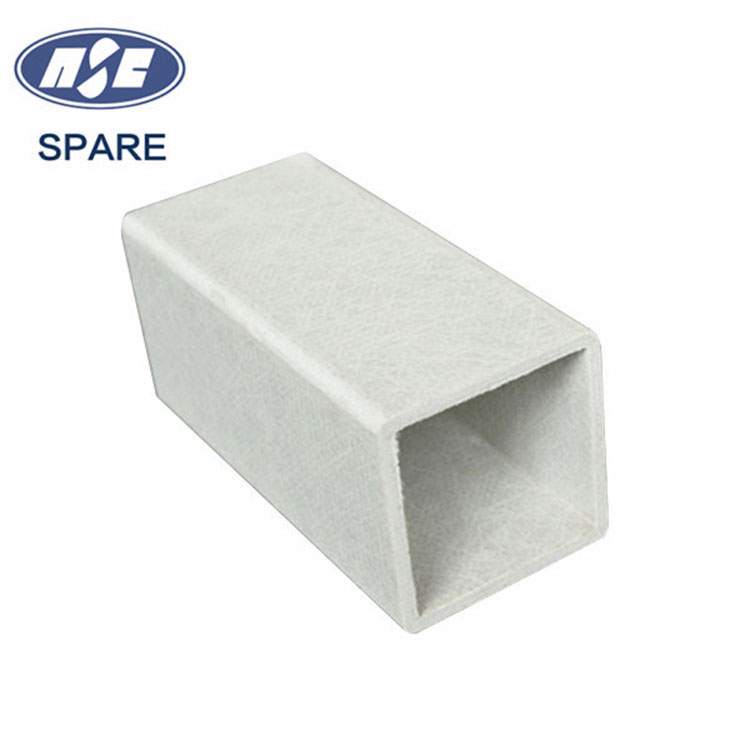

FRP Square

FRP square tubes, also known as fiberglass square tubes, encompass both square and rectangular profiles, featuring equal and unequal side lengths. Notably distinct from square tubes of other materials, FRP square tubes offer unique properties and advantages.

FRP pultruded square pipe is a uniform cross-section structural profile formed by continuous pultrusion process. Compared with pipes made of other materials, it has the following significant characteristics:

1. FRP square pipes are corrosion-resistant, environmentally friendly and pollution-free: FRP square pipes can resist the erosion of acids, alkalis, salts, seawater, untreated sewage, corrosive soil or groundwater and many chemical fluids. Fiberglass pipes are non-toxic, rust-free, odorless, have no secondary pollution to water quality, and do not require anti-corrosion.

2. FRP square and rectangular tubes have the characteristics of heat resistance and frost resistance: at -30℃, they still have good toughness and extremely high strength, and can be used for a long time in the range of -50℃-80℃. They are made of high-temperature resistant resin. The square tubes produced can also work at temperatures above 110°C.

3. FRP square rectangular tubes are light in weight and high in strength: their specific gravity is 1.65-2.0, only 1/4 of steel, but the circumferential tensile strength of FRP tubes is 180-300MPa, and the axial tensile strength is 60-150MPa, which is approximately alloy steel.

4. Good electrical insulation. FRP is a non-conductor. The electrical insulation of pipes is excellent. The insulation resistance is 1012-1015ΩNaN. It is most suitable for use in power transmission. The heat transfer coefficient of FRP is very small, only 0.23 in areas with dense telecommunications lines and areas with many mines. It is five thousandths that of steel.

Due to the above-mentioned corrosion resistance, wear resistance, frost resistance and anti-fouling properties of FRP square and rectangular pipes, the project does not require anti-rust, anti-fouling, insulation, heat preservation and other measures and maintenance. FRP square and rectangular pipes can be customized according to the user's various requirements. Requirements, such as different flow rates, different pressures, and different load conditions, require the design and manufacture of pipelines with different pressure levels and stiffness levels.
