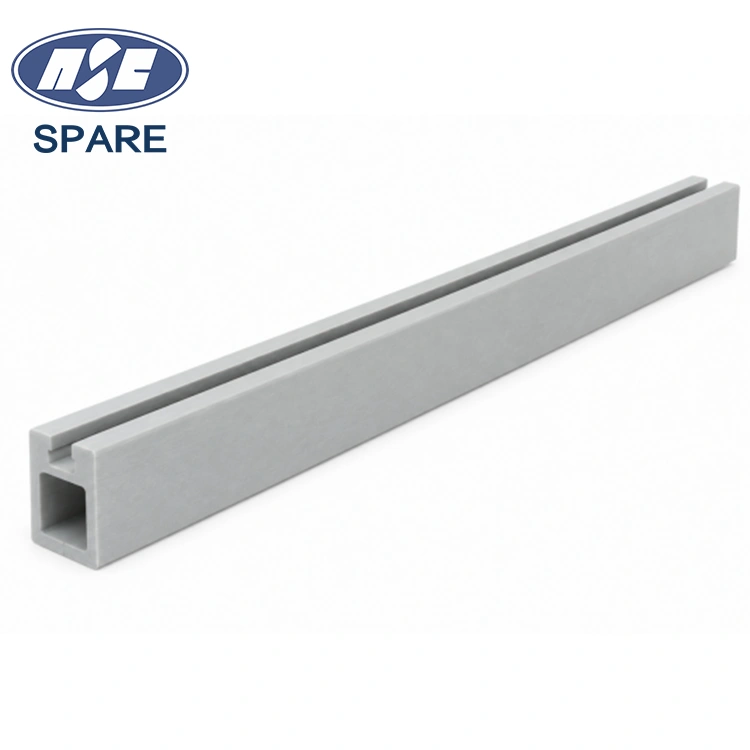

FRP Slot Profile

Product Overview

Product Name: FRP Slot Profile

Brand: Spare Composites

Process: Pultrusion

Key Features: Continuous slot along full length; drill-free adjustable mounting; corrosion resistant; electrically and thermally insulating; lightweight; dimensionally consistent; low maintenance; easy to cut and machine on site

Standard Sizes: 40×40×4 mm to 120×60×6 mm; single slot and double slot versions available; custom slot dimensions on request

Standard Length: 6 meters; custom lengths available

Resin Systems: Polyester, Isophthalic, Vinylester, Epoxy; flame retardant grades available

Color: Light grey (RAL 7035); custom colors available on request

Core Advantages

• Continuous slot along the full length allows flexible bracket and fixing positioning without drilling
• Corrosion resistant — performs in acids, alkalis, salt water, and chemical environments
• Non-conductive — electrically and thermally insulating
• Lightweight — significantly lighter than equivalent steel slotted sections
• Dimensionally consistent — tight tolerances along the full length
• Low maintenance — 50+ year service life with zero treatment
• Easy to cut and machine on site with standard tools

Design Value of the Continuous Slot

Traditional steel or aluminum profiles require measuring, marking, drilling, or tapping when installing brackets, cable clamps, or panels. This process is time-consuming, accumulates errors, and cannot be reversed once a hole is drilled. Spare Composite FRP Slot Profiles solve this problem with a continuous slot that runs the entire length of the profile.

• Drill-free: Fixings slide to any position along the slot and lock in place, reducing on-site measuring and drilling operations.
• Field adjustable: Brackets can be repositioned by simply loosening and retightening, ideal for modular systems with frequent design changes or future expansion.
• Preserves fiber continuity: Avoids fiber cutting, stress concentration, and corrosion initiation points caused by drilling, maintaining the profile's mechanical properties and corrosion barrier.
• Reduces fastener variety: A uniform slot specification allows bolts, T-nuts, and angle brackets to be used across different profile sizes, simplifying spare parts inventory.

Specifications and Dimensions

Size range: 40×40×4 mm to 120×60×6 mm. The table above shows standard sizes. Other sections, wall thicknesses, slot widths, and slot depths can be customized according to project drawings. Reference weights are for estimation only; actual values are subject to factory test data. Standard length is 6 meters; custom lengths are available.

Resin Systems and Performance

Spare Composite offers the following resin systems to meet different service environments and corrosion resistance requirements:

• Polyester: General purpose, suitable for outdoor and mildly corrosive environments.
• Isophthalic: Water and mild acid/alkali resistant, suitable for water treatment and general industrial environments.
• Vinylester: High corrosion resistance, suitable for strong acids, strong alkalis, oxidizing media, and offshore platforms.
• Epoxy: High strength and high temperature resistance, suitable for structural load-bearing and applications requiring extremely high electrical insulation.

Flame retardant grades are available to meet different fire safety requirements. Typical temperature range: -50°C to +120°C (varies by resin system).

Color and Appearance

Standard color is light grey (RAL 7035). Custom colors are available on request. Surface can be smooth or slip-resistant. UV-resistant coatings are available to extend outdoor service life.

Typical Applications

• Cable management support systems
• Modular structural framing and assembly systems
• Panel and equipment mounting in chemical plants
• Offshore platform instrument and equipment supports
• Electrical substation cable and instrument supports
• Water treatment facility equipment mounting
• Greenhouse and agricultural modular framing
• Industrial rack and shelving systems
• Sign and display mounting systems
• Solar panel mounting structures

Installation and Fabrication Guidelines

• Cut with standard woodworking tools or diamond blades. Carbide-tipped tools are recommended.
• Drill at low speed with high feed to avoid overheating and burning the resin.
• Use T-nuts or slot nuts with bolts to ensure reliable connections.
• Avoid over-tightening to prevent slot deformation or profile cracking.
• For on-site bonding, use epoxy or vinylester structural adhesives and follow the adhesive manufacturer's instructions.

Quality Assurance and Certifications

Spare Composite has more than ten years of experience in pultruded profile production. We are ISO 9001 certified. Raw materials are sourced from well-known domestic and international suppliers. Each batch is sampled and tested to ensure mechanical properties, corrosion resistance, and dimensional accuracy meet requirements. Third-party test reports are available upon request, including tensile strength, flexural strength, Barcol hardness, oxygen index, and more.

Ordering Information

Please provide the following information when ordering: section size, wall thickness, slot type (single or double), resin system, length, quantity, color, and any special requirements. For custom slot dimensions or cross-sectional shapes, please provide drawings or detailed technical parameters. We will respond to your inquiry within 24 hours.
